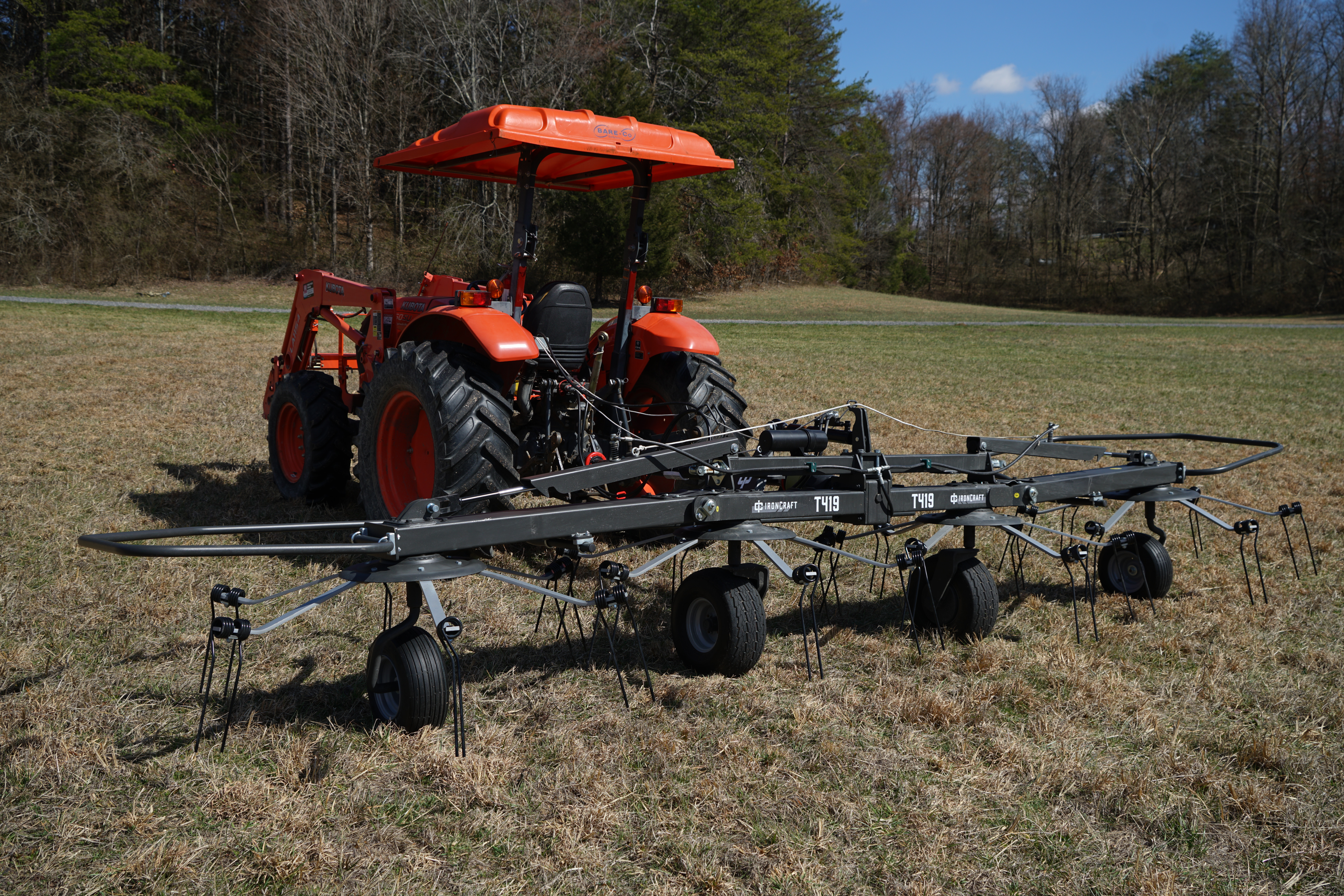

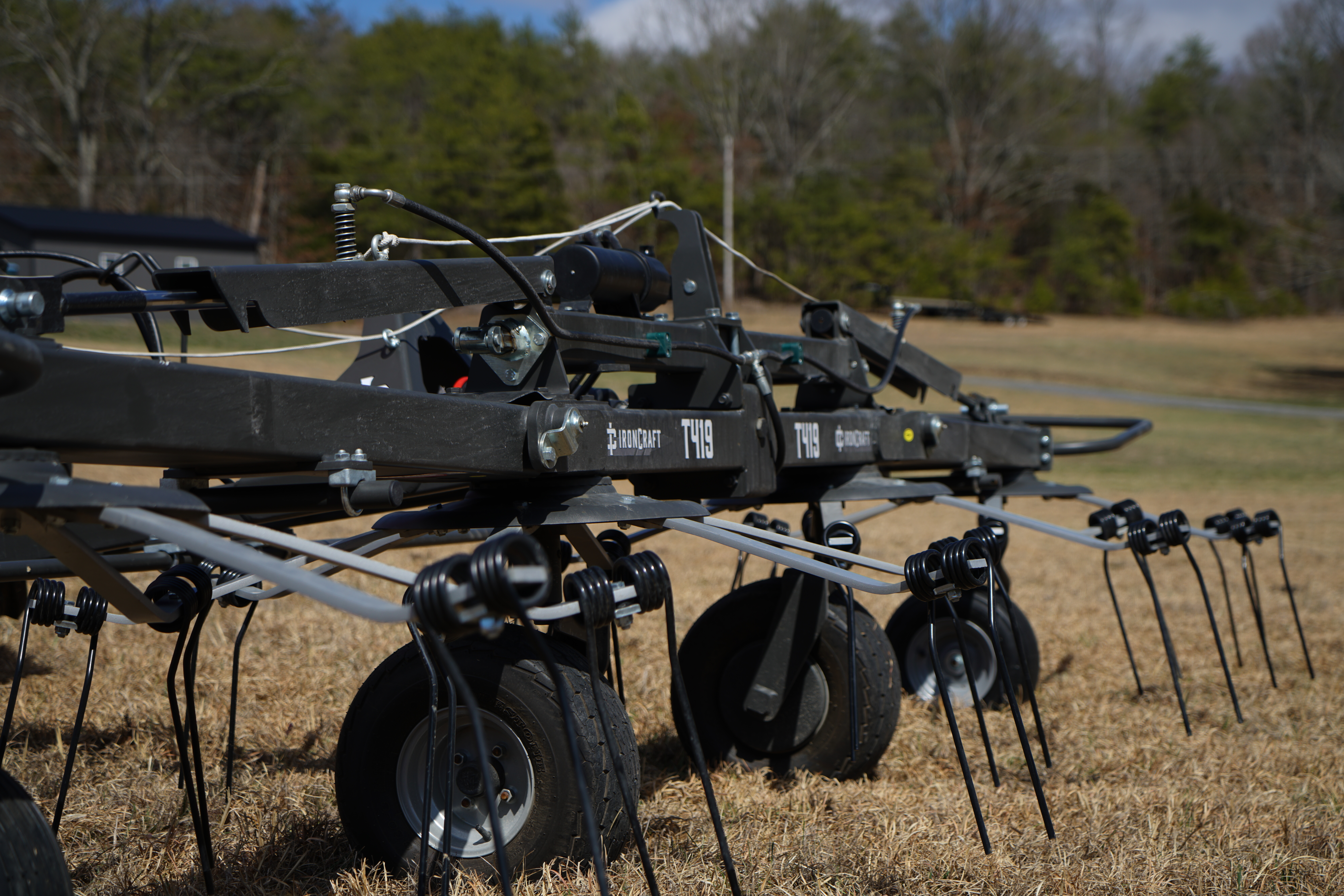

Pull-Type Hay Tedders

IronCraft tedders are equipped with independent rotors that can easily adapt to various ground conditions. They are available in 4 different working widths and come with a pull-type hitch. Depending on the model, the working angle can be adjusted either hydraulically or mechanically. These tedders are designed to be user-friendly and easy to transport, ensuring efficient forage distribution for quick and uniform drying.

Recommended for 20-60 PTO
Ground adaptation through independent rotors with articulated frame sections and large diameter wheels.

View Literature

View Manual

Available Colors:

Gray

Model:

We've Got You Covered.

Find a Dealer near you to get started.

Dealer Locator

Become a Dealer

Product Family	HayTedders
Product	T210
Description	TWO BASKET MANUAL LEVELING TEDDER - 10 FT
HP Required	20 HP
Working Width	10.2'
Transport Width	10.5'
Transport Height	3.6'
Transport Length	7.5'
Number of Rotors	2
Tine Arms Per Rotor	6
Rotor Tire	2 x 15 x 6.0-6
Road Signaling Kit	N/A
Working Angle Adjustment	N/A
Wing Fold	Fixed
Rear Remotes Required	1
Weight (lbs)	425 lbs

Product Family	HayTedders
Product	T417
Description	FOUR BASKET MANUAL LEVELING TEDDER - 17 FT
HP Required	50 HP
Working Width	17'
Transport Width	9.8'
Transport Height	8.7'
Transport Length	9'
Number of Rotors	4
Tine Arms Per Rotor	6
Rotor Tire	4 x 16 x 6.5-8
Road Signaling Kit	N/A
Working Angle Adjustment	Mechanical (Optional Hydraulic Kit)
Wing Fold	Hydraulic
Rear Remotes Required	1
Weight (lbs)	1,080 lbs

Product Family	HayTedders
Product	T419
Description	FOUR BASKET HYDRAULIC LEVELING TEDDER - 19 FT
HP Required	50 HP
Working Width	19'
Transport Width	10.5'
Transport Height	9.4'
Transport Length	9.5'
Number of Rotors	4
Tine Arms Per Rotor	6
Rotor Tire	2 x 16 x 6.5-8 2 x 18.5 x 8.5-8
Road Signaling Kit	N/A
Working Angle Adjustment	Hydraulic
Wing Fold	Hydraulic
Rear Remotes Required	2
Weight (lbs)	1,157 lbs

Product Family	HayTedders
Product	T624
Description	SIX BASKET HYDRAULIC LEVELING TEDDER - 24 FT
HP Required	50 - 60 HP
Working Width	24'
Transport Width	9.8'
Transport Height	12.1'
Transport Length	9'
Number of Rotors	6
Rotor Tire	8 x 16 x 6.5-8 (Walking Tandem Wheels)
Road Signaling Kit	Standard
Working Angle Adjustment	Hydraulic
Wing Fold	Hydraulic
Rear Remotes Required	2
Weight (lbs)	1,740 lbs

Machine Width:	N/A
Machine Height:	N/A
Machine Length:	N/A
Wheelbase:	N/A
Operating Weight:	N/A
Tipping Load:	N/A
Operating Capacity:	N/A
Operating Capacity (50%):	N/A
Hydraulic Horsepower (Standard Flow):	N/A
Hydraulic Horsepower (High Flow):	N/A
