Choosing the right attachment for your tractor can seem a bit daunting at first, especially if you’re just getting started. But don’t worry, there are only a few main things you need to keep in mind to make sure it fits properly.
Don’t know your tractor specs? We put together a helpful specs lookup site to help you out! CLICK HERE
1. Horsepower
Tractors are generally categorized by their horsepower. Each attachment will have a recommended horsepower range that you’ll want to stay close to. If you have a larger attachment than your tractor is built for – you’ll end up bogging down the tractor. With an attachment that’s built for less horsepower – you may over-torque and break the attachment.

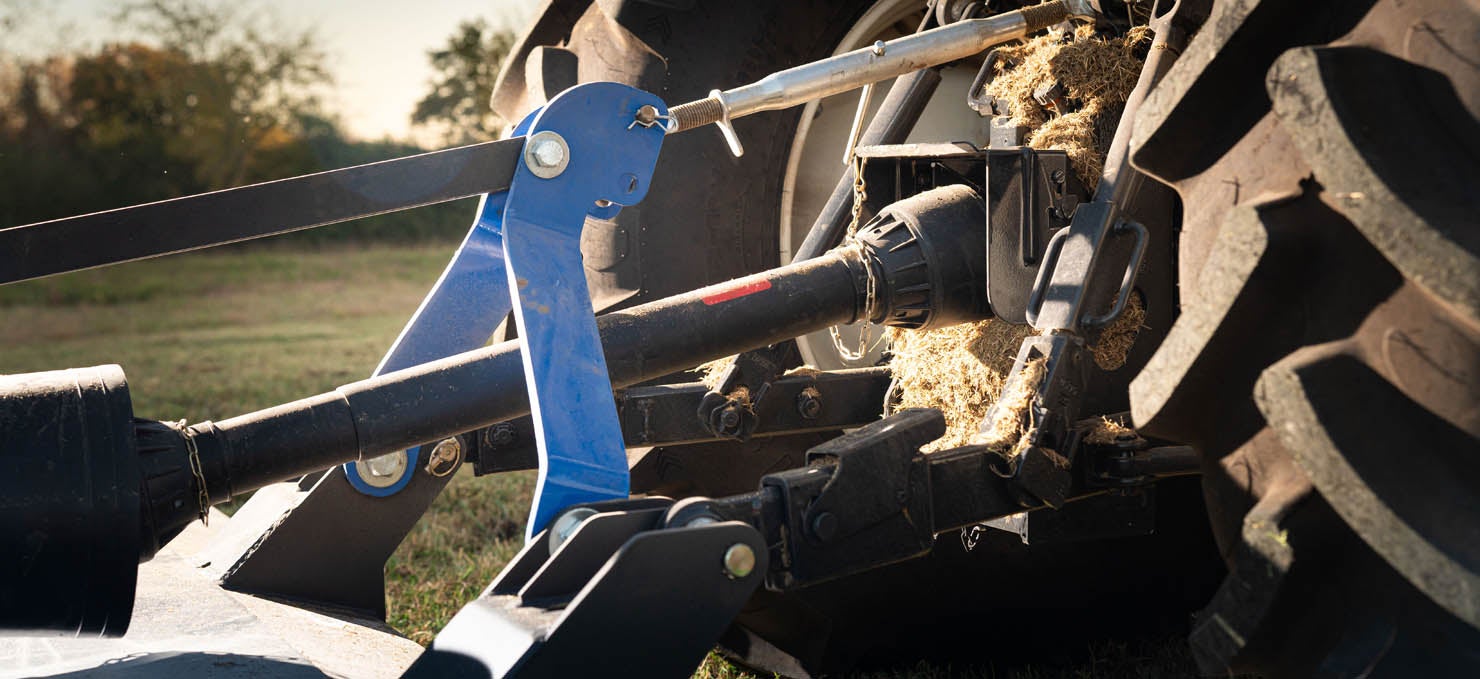

2. 3-Point Hitch Class
Next, look to match the class of the 3-point hitch on your tractor. Having the right connection is important to making sure your attachment will work correctly! For most small landowners and hobby farms – you’ll be looking at a Cat 1 or Cat 2 hitch.
- Cat 0: Typically found on smaller garden tractors with up to 15 horsepower. These hitches use 5/8″ top link and lift arm pins.
- Cat 1: Common on small to medium tractors with 15 to 45 horsepower. They use 3/4″ top link pins and 7/8″ lift arm pins.
- Cat 2: Found on larger tractors with 55 to 95 horsepower, featuring 1″ top link pins and 1 1/8″ lift arm pins.
- Cat 3: Used on larger tractors with 95 to 100+ horsepower, employing 1 1/4″ top link pins and 1 7/16″ lift arm pins.
3. Width of your Tractor
Lastly, for attachments like tillers, box blades, etc – make sure the attachment is at least as wide as your tractor. This helps you avoid recompacting the soil you’ve just worked on, making your job more efficient.
If you need help making a decision, our territory managers and dealers are always available to answer any questions you may have and help you find the perfect attachment for your needs!
